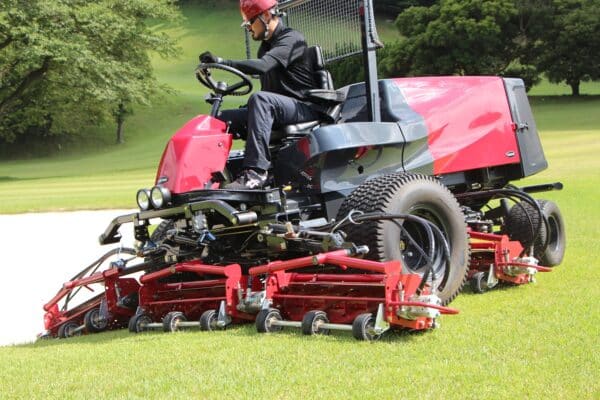

Baroness LM3210 – Cylinder Mower
LM3210 is a heavy-duty mower equipped with the most durable and sharpest cylinders created from an original steel combination and made exquisitely by proven craftsmanship and cutting edge manufacturing technologies.
The LM3210 can be equipped to cut Fairways or the Rough, giving the end-user better options for high performance combined with a cleaner cut.
The LM3210 leaves a beautiful finished cut, even in harsh working conditions. With a cutting width of 3.2 metres, no. 1 in the industry for a 5-unit reel mower, combined with a minimum turning radius of just 3.2 metres, the LM3210 can cover vast fairway and rough areas in double quick time.
A mower that has it all…unparalleled power, high work rate and a beautiful finish€¦€¦ the Baroness LM3210!
Disclaimer: Base machine spec only, attachments POA.
Description
Key Features:
Comfortable operating area
All the operator controls are conï¬gured on the right side of the driver’s seat and positioned with ease of use, accessibility and function in mind. Amenities such as tilt steering, suspension seat with multiple adjustments and a cup holder allows for optimal operator comfort and reduce fatigue.
Simple maintenance
Rear gull wing opening ensures easy access and room for maintenance. All cutting cylinders can be positioned outwards for easy accessibility and maintenance.
The Heart of Baroness
At the heart of every Baroness reel mower is the cutting cylinder and bedknife. No-one takes more care than Baroness! Every cutting cylinder is individually balanced before being installed and our heat treatment process ensures that the cutting edges of both our cutting cylinders and bedknives stay sharp and true.
Tier 4 clean engine emission regulation compliant
Equipped with Tier 4 emission regulation compliant, large displacement Kubota turbo engine. Our clean engine utilizes the latest technologies to address global environment issues while still achieving lower fuel consumption and better fuel economy while boasting unparalleled power.
Specification
| Blade Type | Cylinder blades |
|---|---|
| Capacity | 51 Litres |
| Cutting Height Min/Max | Type F: 10mm – 60mm / Type R: 17mm – 68mm |
| Cutting Type | Cylinder |
| Cutting Width/Working Width cm | 320cm (126 inches) |
| Dimensions | Width (transport): 235cm (Type F) |
| Display SKU | LM3210-21 |
| Engine Make | Kubota V2403-CR-TE4B |
| Engine Power | 43.2 kW (58.9 PS) |
| Fairways | Yes |
| Fuel Tank Capacity | 51 Litres |
| Fuel Type | Diesel |
| Model | LM3210 |
| Net Power At Preset RPM | 2400 rpm |
| No Of Blades | 7 (Type F) |
| Overall Dimensions | Width (transport): 235cm (Type F) |
| Power | 43.2 kW (58.9 PS) |
| Single Vario Speed | Transport 15.5 km/h (2WD) |
| Speed Forward Min/Max | Transfport 15.5 km/h (2WD) |
| Speed | Transport 15.5 km/h (2WD) |
| Tank Capacity | 51 Litres |
| Transmission Type | Drive: Hydrostatic (2WD/4WD selectable) |
| Type | Cylinder blades |
| Updated | 30-09-2024 |
